The Martel DM246 is a standalone digital courtroom recorder designed to capture four separate audio channels without requiring a computer to run the recording. It can be used for hearings, courtroom proceedings and voice-writing workflows with a suitable microphone and transcription setup.
DM246 four-channel courtroom recording
The DM246 records to SD or SDHC memory and provides headphone monitoring during recording. Separate channels let the operator organize microphone inputs around positions such as the judge, witness, prosecution and defense. The recording still depends on microphone placement, level settings, power and the recording media; no recorder can guarantee that every word will be intelligible.
Compare the DM246 courtroom recorder packages to choose the recorder, microphones and transcription equipment for your room. Package contents differ, so confirm which microphones, cables and transcription tools are included.
How separate audio channels help during playback
Multiple microphone inputs
Position microphones near the sources that need to be recorded and assign them to the intended recording channels. Some packages use more microphones than recording channels. In that case, microphones combined onto one channel cannot later be separated into independent tracks simply by using the playback controls.
Selecting a channel
Compatible multichannel transcription software lets the listener select one channel or a combination of channels. For example, listening to the microphone nearest a witness may make that testimony easier to follow than listening to all room microphones together.
Clarity and focus
Channel selection reduces competing recorded inputs, but it does not remove all background sound or separate individual voices already captured by the same microphone. Good microphone placement and a monitored test recording remain essential, especially when speakers interrupt one another.
Transcription and review

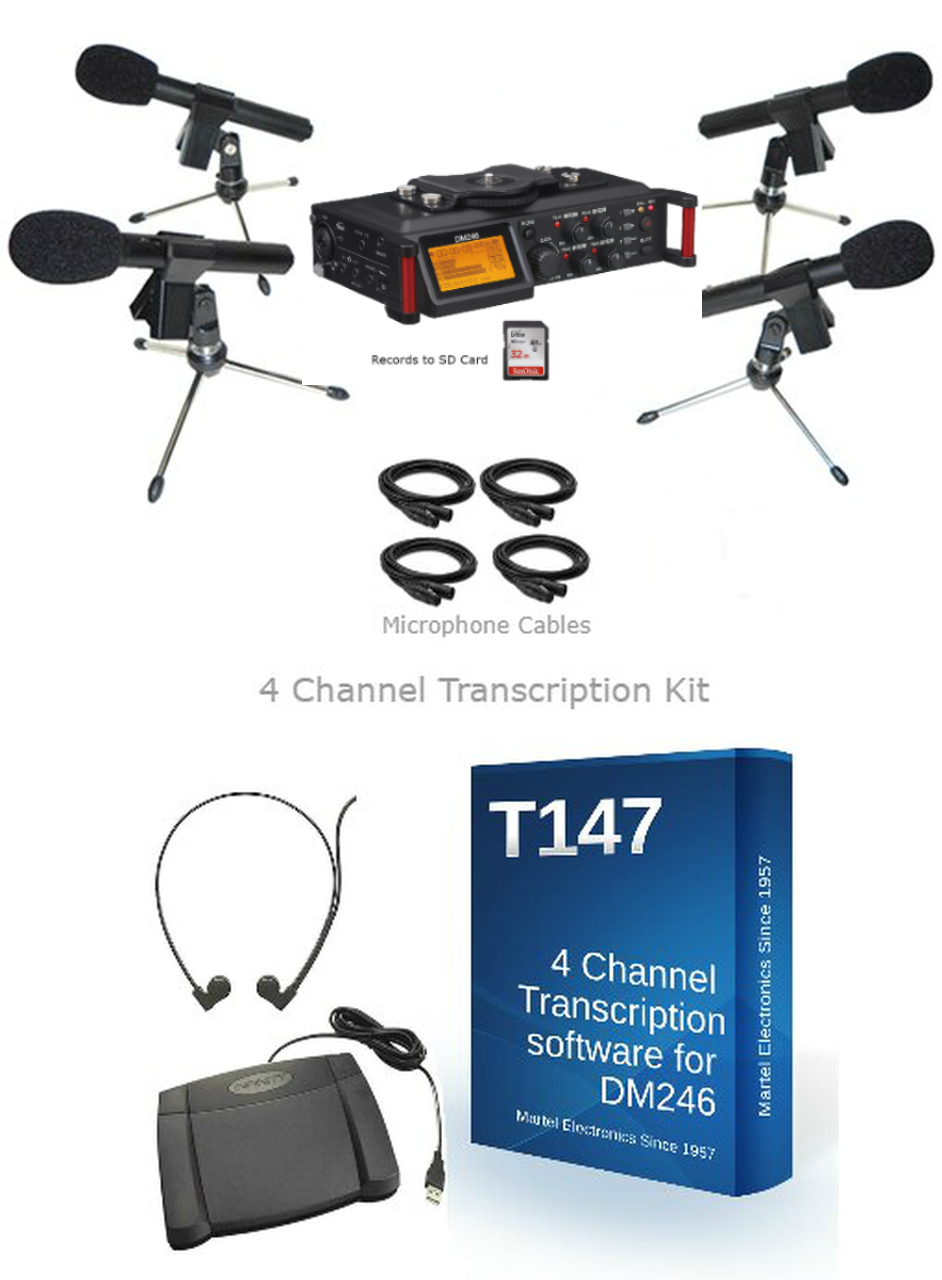

The T147 four-channel transcription kit is intended for the DM246 workflow and allows supported recordings to be reviewed by channel. The transcriptionist still listens, identifies speakers and checks the transcript. Channel control is a review aid, not automatic proof of an accurate transcript.
Using a stenomask with the DM246
A compatible stenomask can be assigned to one channel while the other channels record the room. The DM246 stenomask package for voice writers includes equipment for that workflow. Confirm the mask connection, input settings and microphone power requirements before connecting it.
Choosing a microphone package

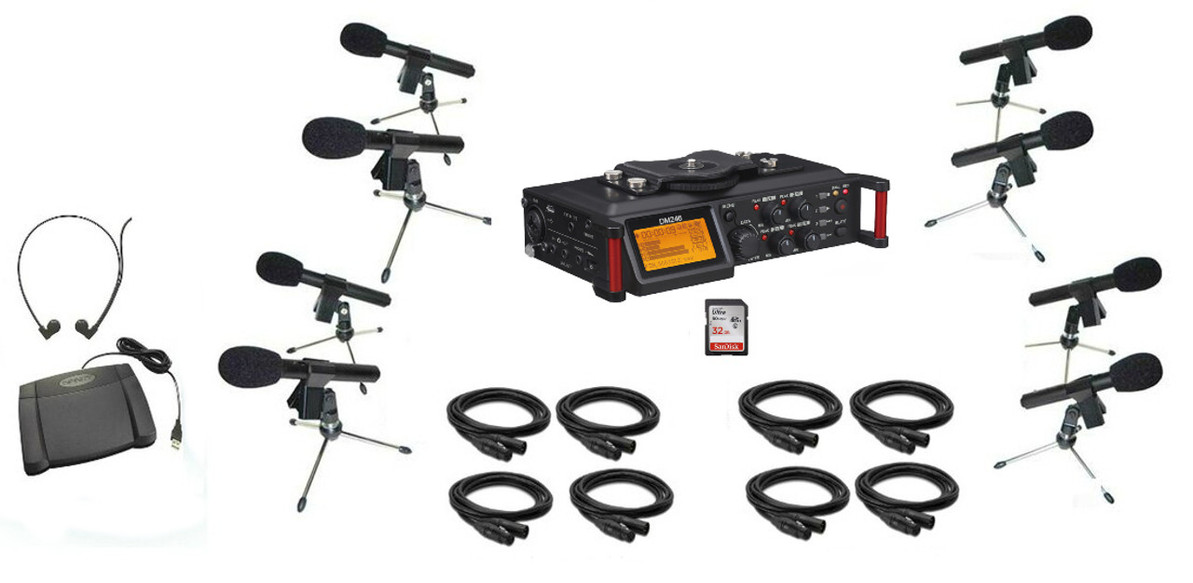

Martel offers a four uni-directional microphone and transcription package, a four omni-directional microphone package, and an eight-microphone package. Match microphone placement and pickup style to the room, then verify each channel, monitoring, storage capacity and backup procedure before recording a proceeding.
